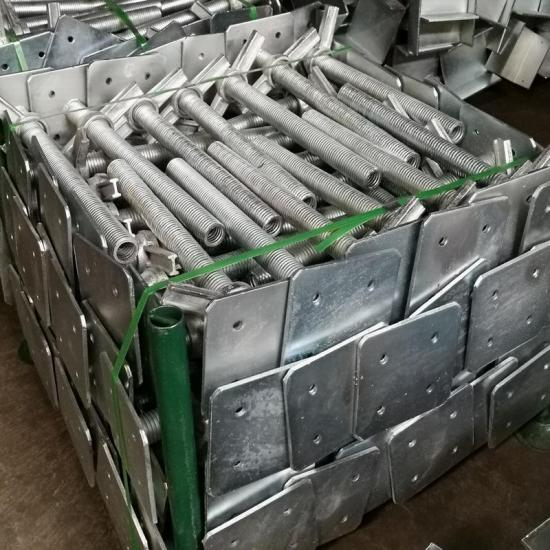

Adjustable Base Jack / Screw Jack for System Scaffolding | Solid & Hollow Types
Key Features
-
Heavy-Duty Load Support — Designed to provide stable vertical load-bearing for system scaffolding structures.
-
Precise Height Adjustment — Allows accurate leveling on uneven ground, ensuring safe and stable setup.
-
Solid & Hollow Options — Available in solid rolled-thread bars and heavy-duty seamless pipe versions.
-
Full Compatibility — Fits 48.3mm scaffolding pipes or 60.3mm heavy-duty legs.
-
High-Strength Steel Components — Cast-steel adjustment nut + 6–8mm carbon steel base plate for maximum durability.
-
Corrosion-Resistant Surface — Available with galvanized finishing suitable for outdoor and long-term use.
-
Global Standard Design — Widely used in modular system scaffolding (Ringlock, Cuplock, Kwikstage).
Product Description
The adjustable base jack—also known as a screw jack or leveling jack—is an essential component for system scaffolding structures. It provides strong vertical load capacity and precise height adjustment, ensuring stability on uneven construction surfaces.

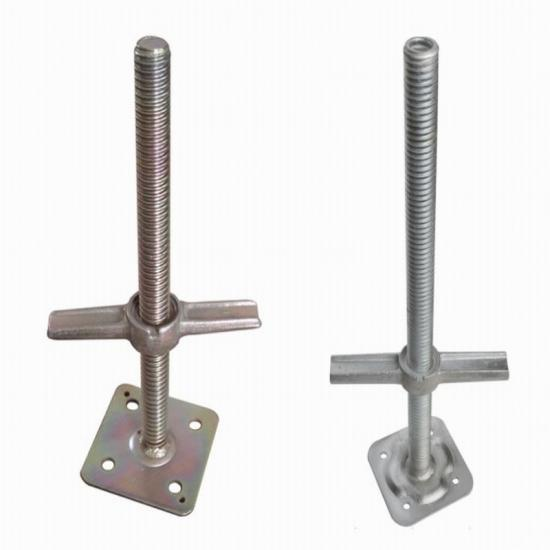

Our base jacks are available in solid and hollow types:
-
Solid Base Jack is manufactured with a rolled solid steel bar (Ø37.5mm), offering maximum compression strength.
-
Hollow Base Jack is made from Ø38×5mm or 5.5mm seamless steel pipes with excellent performance-to-weight ratio.
The cast-steel adjustment nut is compatible with 48.3mm scaffolding tubes and 60.3mm heavy-duty legs used in Ringlock, Cuplock, and Kwikstage systems.
The 150×150×6–8mm carbon steel base plate provides a wide load distribution area for enhanced stability.
This product is widely used in high-rise buildings, industrial projects, infrastructure, and system scaffolding rental fleets worldwide.
Specifications
Solid Base Jack（实心可调底座）
| Product Code | Description | Specification | Imperial Size | Weight (kg) | Weight (lbs) |
|---|---|---|---|---|---|
| SBJ.37070 | Solid Base Jack | Tr37×700mm, 150×150×8mm | 28" | 7.28 | 16.05 |
| SBJ.37060 | Solid Base Jack | Tr37×600mm, 150×150×8mm | 24" | 6.52 | 14.38 |
Hollow Base Jack（空心可调底座）
| Product Code | Description | Specification | Imperial Size | Weight (kg) | Weight (lbs) |
|---|---|---|---|---|---|
| HSJ.38070 | Hollow Base Jack | Ø38×5×700mm, 150×150×8mm | 28" | 4.84 | 10.67 |
| HSJ.38060 | Hollow Base Jack | Ø38×5×600mm, 150×150×8mm | 24" | 4.43 | 9.77 |
Technical Data
-
Material: Solid steel bar / Seamless steel pipe
-
Thread Type: Rolled thread (TR37)
-
Base Plate: 150 × 150 × 6–8 mm carbon steel
-
Nut Material: Cast steel
-
Compatibility:
-
48.3mm scaffolding tubes
-
60.3mm heavy-duty system legs
-
-
Surface Finish: Hot-dip galvanized / Electro-galvanized
Applications
-
High-rise building construction
-
Ringlock, Cuplock & Kwikstage systems
-
Industrial scaffolding
-
Infrastructure & bridge projects
-
Modular support & shoring
-
Scaffolding rental companies
-
